• On sale!
  • -10%


CHF1,150.20 Save 10%

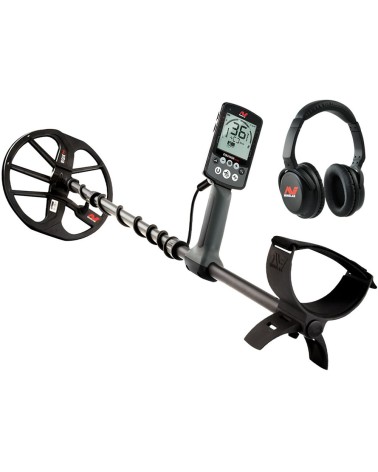

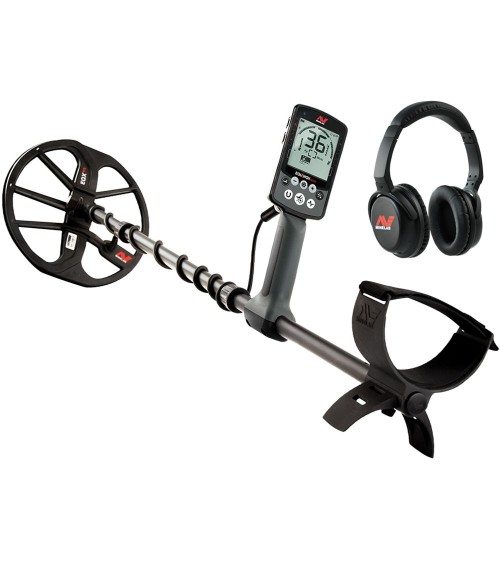

The Equinox 800 is the next generation detector from manufacturer Minelab, all-terrain. Equipped with Mutli-IQ technology, you can choose from 5 frequencies: 5, 10, 15, 20 and 40kHz or use the 5 frequencies simultaneously. Very lightweight, it comes with a Minelab wireless headset for real freedom. Submersible, you can detect underwater up to 3 m . Best!!!

Waterproof helmet includes .

Recommended by Swissdetector.ch

in stock

Multi-IQ Multifrequency Metal Detector

Waterproof up to 3 meters

Also for the Goldnugget search

Multi-IQ Multifrequency Technology

The first metal detector that has Multi-IQ Multifrequency technology and operates on all frequencies simultaneously. The Equinox 800 has 5 kHz, 10 kHz, 15 kHz, 20 KHz and a 40 kHz search frequency. You can choose whether to search on a single frequency or on multi-IQ. The Equinox 800 searches on all frequencies at the same time. The advantage of a low 5 kHz frequency is that the metal detector has a wider depth range. The advantage of a 40 kHz search frequency is that the detector is more sensitive to small parts and gold (nuggets). Multi-IQ technology combines the best of all five frequencies!


Completely waterproof up to 3 meters under water, suitable for fresh and salt water, even sobing in the rain is no problem with the Equinox 800.

Search Modes

The Equinox 800 has 8 search modes. 2 search modes for parks, 2 for fields, 2 for beaches and 2 for gold hunting.

Built-in Bluetooth + Wifi WM08 wireless system including wireless headphones

The Minelab Equinox 800 has a built-in Bluetooth + Wifi WM08 radio system including wireless headphones. There is also a connection for optional wired headphones or underwater headphones. In addition, the volume can be adjusted directly via the control unit.

Built-in Li-ion battery

The Equinox 800 has a built-in Li-Ion battery that is rechargeable via magnetic USB port. The battery life is about 10 – 12 hours. You can also charge the Equinox via USB via a power bank during the search, so you can search and charge at the same time!

Weight and search coils

The weight of the Minelab Equinox metal detector is only 1.3 kg! And that with a strong, large 28 cm DD search coil.

Optionally, there is a 15 cm coil and a large 38 x 30 cm coil.

The ground adjustment can be carried out both automatically and manually. Manual soil balancing is important for difficult soil conditions or highly mineralized soils.

Reaction speed

The reaction speed of the Equinox detector is extremely fast. The detection and separation of different types of metal is very well detected by this detector. This is very important if you want to see if several objects are next to each other. With the Equinox 800 you won't miss an object anymore!

 Object identification

The Equinox has an object identification with conductance values, which can be easily read on the display during the search. Conductance values run from -9 to 0 for iron objects and from 0 to 40 for detecting more valuable objects, with silver objects having higher conductance values and gold objects having a medium conductance. Of course, you can also hide the iron objects from -9 to 0 with the discrimination function.

Display illumination

The Equinox series has display illumination, perfect for searching at dusk or in dark areas.

Pinpoint function and software updates

There is also a pinpoint function for recording the exact location. With the help of the pinpoint function, you can dig up the objects quickly and easily. It is also possible to perform Equinox software updates via USB.

Spécifications techniques:

Applications: Land , Shallow water , Underwater , Freshwater beach , Saltwater beach , Highly mineralized soils

Kind: Digital , Motion

Technology: VLF (Very Low Frequency) , Interchangeable Search Frequency , Simultaneous Multifrequency

Search frequency: 5 kHz, 10 kHz, 15 kHz, 20 kHz, 40 kHz and Multi

Search coil: 28 cm (11") waterproof DD search coil

Weight: 1.3 kg

Linkage: Cam-Locks adjustable boom from 106 - 129 cm

Watertightness: Waterproof up to 3 m, control unit splash-proof, search coil waterproof

Headphone: 3.5mm headphone jack

Type and number of batteries: Li-Ion Battery

Battery: Approx. 12 hours

Depth range small objects (euro coin): Approx. 40 cm

Depth range large objects: approx. 150 cm

Number of search modes: 8 search modes: 2 park, field, beach and gold modes each

Service: Pushbuttons

Built-in wireless module: Yes

Target group: Advanced, Professionals

Battery level readable: Yes, in 3 stages

Depth range readable: Yes, in 5 levels

Soil mineralization readable: No

Ground balancing: Automatic and manual floor balancing

Sensitivity setting: 25 sensitivity levels

Pinpoint function: Yes

Discrimination against undesirable objects: Yes

Notch filter: Yes

Notch Volume: No

Object identification by audio sounds: Yes, 1, 2, 5, or 50 tones

Object identification readable: No

Conductance display: Yes

Responsiveness: Like the clappers

Volume: Yes, 25 levels

Display illumination: Yes

Key illumination: No

Search coil illumination: No

Vibration as a signal: No

Online Software Update: Yes

Frequency changer: Automatic interference suppression

Threshold (background tone): Yes, 0 to 26

Multilingual operating software: Symbols only

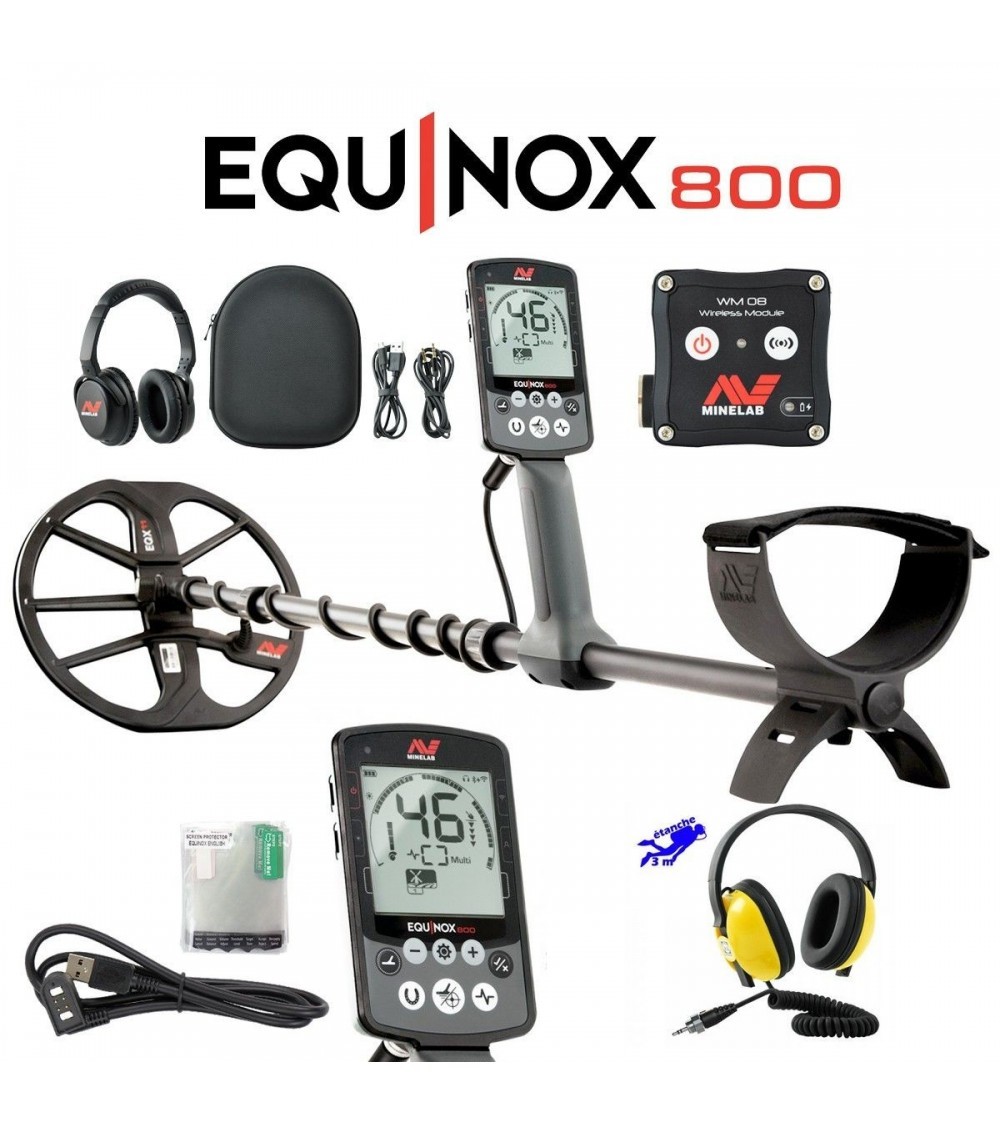

Contenu de la livraison :

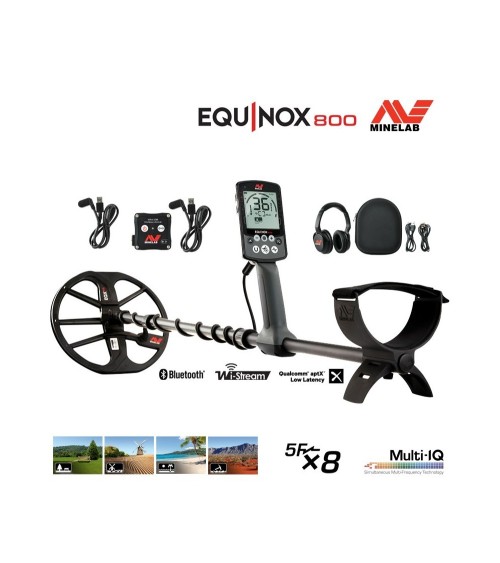

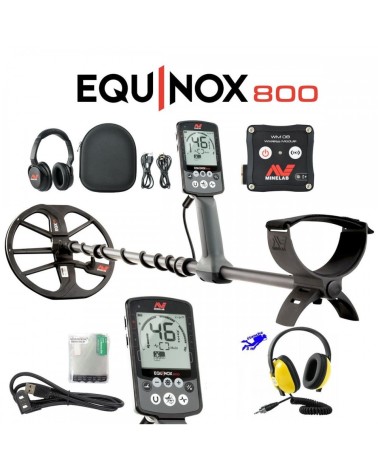

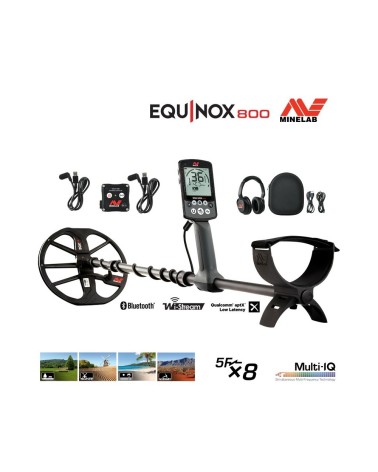

  • Minelab Equinox 800 Metal Detector
  • 28cm / 11" Waterproof DD Search Coil with Coil Protection
  • Bluetooth Headphones

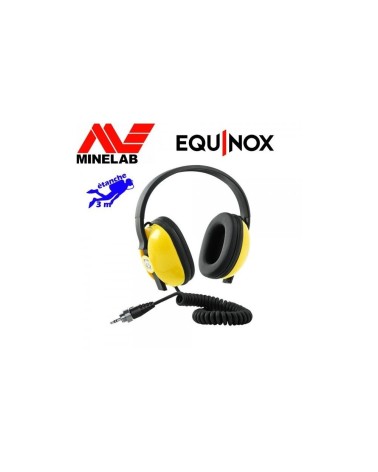

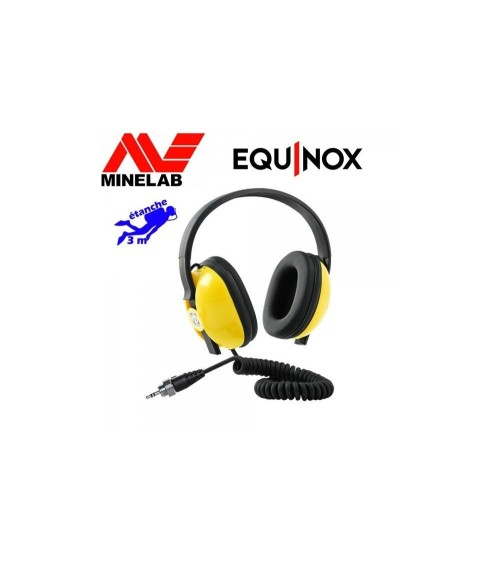

  • Waterproof Headphones
  • Wireless Module WM08
  • USB cable
  • Operating instructions
  • 2 years warranty
  • 1 year additional manufacturer's warranty
